Polycarbonate Dome Flat Glass Tubular

Lazer Mfg. Skylights

We are proud of the industry leading standards and specially designed features of Dade County Approved Skylights we at Lazer Manufacturing are quoting and will hopefully be supplying for your next project. We offer the highest performing, eco-friendly/green option to allow the light in and brighten up your project.

Featured Skylight Styles

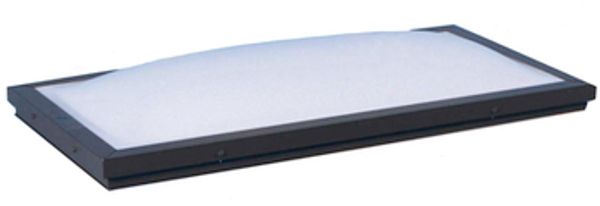

Polycarbonate Dome Skylights

Miami Dade Approved Self flashing skylight

Self - Flashing

​"The complete skylight". Includes flashing / curb (4", 6", 9", 12"+). Made to mount right over a hole in the roof deck. No need to build a curb or assemble multiple piece flashing systems.


  • FRAME COLOR: BRONZE / MILL / WHITE / ANY COLOR


  • GLAZING COLOR: BRONZE OVER CLEAR / CLEAR OVER CLEAR / WHITE OVER CLEAR
  • STANDARD SIZES MANUFACTURED TO INVENTORY:2X2, 2X3, 2X4, 3X3, 3X4, 4X4.
  • Custom sizes available - 10 Day lead time


  • Miami Dade hurricane approved
  • Negative 80 pressure rating
  • Approved up to 74" x 99"
  • Domes will not fade or diffuse
  • Pyramid style domes available
  • Leak free skylight


Miami Dade Approved


Curb Mounted

The curb mount skylight will mount on top of an existing curb or a curb built by others (much like the top of a shoe box - customer has the shoe box, we will make the top to drop over the box)

  • FRAME COLOR: BRONZE / MILL / WHITE / ANY COLOR
  • GLAZING COLOR: BRONZE OVER CLEAR / CLEAR OVER CLEAR / WHITE OVER CLEAR
  • STANDARD SIZES MANUFACTURED TO INVENTORY:2X2, 2X3, 2X4, 3X3, 3X4, 4X4.


  • Custom sizes available - 10 Day lead time


  • Miami Dade hurricane approved
  • Negative 100 pressure rating
  • Approved up to 61" x 99"
  • Domes will not fade or diffuse
  • Pyramid style domes available
  • Leak free skylight


Miami Dade Approved

Glass Skylights

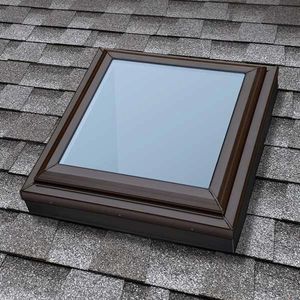

Self - Flashing and Curb Mounted Fixed Glass Skylights

The Fixed glass skylight from Lazer Mfg. exhibits high quality and top performance in an affordable glass skylight. Insulated glass skylights feature extruded aluminum with welded corners for extra durability.  The Self flashing models include pre-punched flange for easy installation and the curb mount models are oversized to install over a pre existing curbs.  All models include a full condensation gutter.  The interior wood is pre-painted white and has a drywall return sized for standard wallboard for easy finishing.

*We do offer Venting glass skylights however they are not hurricane code approved.


Self - Flashing

  • High Impact Hurricane Rated Glass for extra strength and safety.
  • Powder coated exterior for consistent finish that protects from corrosion
  • High performing LoE-240 Argon-filled glass for energy savings
  • .062” extruded aluminum exterior with welded corners for extra durability
  • Pre-finished white wood interior to match existing ceiling and for added convenience
  • Non Code approved, Non Impact rated skylights also available in 2", 4" and 6" curb heights
  • Custom Sizes available

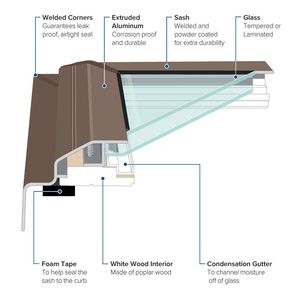

Detail Features


Curb Mounted

  • High Impact Hurricane Rated Glass for extra strength and safety.
  • Powder coated exterior for consistent finish that protects from corrosion
  • High performing LoE-240 Argon-filled glass for energy savings
  • .062” extruded aluminum exterior with welded corners for extra durability
  • Non Code approved, Non Impact rated skylights also available
  • Custom sizes available

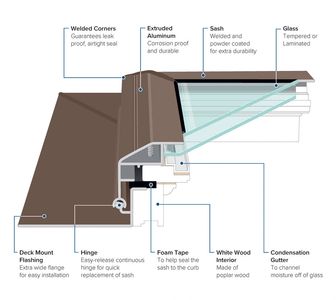

Detail Features


Energy and Glass Details


Miami Dade Approved

Architectural Glass Skylights

Architectural Systems

Our Architectural Skylights are available in a wide range of high quality glass options and fully customizable configurations along with standard configurations. Our standard architectural skylight configurations including square, octagonal and extended pyramids, structural ridge, single and double pitch, and lean-to.  Designed for easy installation and long lasting performance.

Architectural Metal Frame Configurations and Details


  • Miami Dade Approved options
  • Available with 3.5" and 6" aluminum rafters
  • Tested to meet 80 psf design pressure,
  • Large and small missile impact
  • Up to 7' or 15' wide spans depending on the configuration

Custom Single Pitch Hurricane Rated


Custom Structural Ridge Hurricane Rated

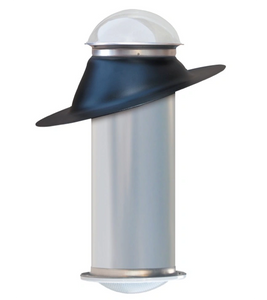

Tubular Skylights

Residential and Commercial

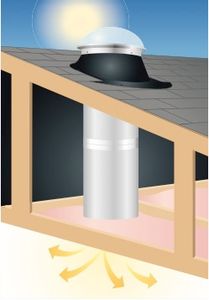

Lazer Mfg. Tubular Skylights is a rooftop dome that captures and then funnels light through a reflective tube to the ceiling. The Tubular Skylight diffuser spreads light evenly into your home. Our patented dome optics redirect light to maximize the levels coming into your home. You’ll always be getting the most out of the available light, even when the sun is low in the sky. Our Tubular Skylights are designed for every type of roof.

.

Residential Tubular Skylights


Available Sizes: 10", 13", 18"

  • Seamless, Commercial Grade Aluminum
  • Choice of curved or flat diffusers in either soft white or prismatic designs
  • Patented reflective system redirects light–Tubular Skylights Light Pipe has a total reflectivity of 98%.
  • Florida Building Code Approved for HVHZ
  • Next day availability
  • Flashing Colors: Bronze, Black or Mill Finish
  • Curb Styles: Roof Mounted or Curb Mounted
  • Complete kit includes all components and hardware for  4' install


Light Coverage

  • 10" - 150 sf  300 watts
  • 13" - 300 sf 500 watts
  • 18" - 500 sf 1,000 watts

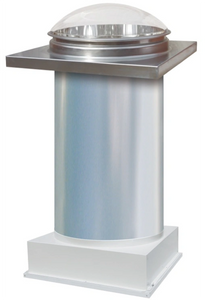

Commercial Tubular Skylights

21" Commercial Tubular Skylights


  • Seamless, Commercial Grade Aluminum
  • Warehouse / Open Ceiling
  • Drop Ceiling
  • Roof Mount or Curb Mounted
  • Florida Building Code Approved for HVHZ
  • 25 year warranty
  • 21" Covers 700 sf  1450 watts
  • Patented reflective system redirects light–Tubular Skylights Light Pipe has a total reflectivity of 98%
  • Flashing Colors: Bronze, Black or Mill Finish

21" Drop Ceiling Model


The drops ceiling model installs  into a standard 24" x 24" office ceiling grid system using a transition box.

  • Flashings: Curb mount and roof mount
  • Diffusers in transition box: Prismatic and soft white
  • Accessories: LED light kit, dimmer kit, Extra light pipe up to 20'

21" Warehouse / Open Ceiling


The warehouse model is used mainly on suspended installations

  • Flashings: Curb mount and roof mount
  • Diffuser styles: Prismatic and soft white
  • Accessories: LED light kit, dimmer kit, Extra light pipe up to 20'

Tubular Accessories


LED Light Kit

  • Adds an electric light fixture inside the tubular skylight for nighttime use
  • Installed as final section of the light pipe
  • Hard-wired to light switch
  • Single or dual bulb versions available
  • Available for 10, 13, 18, and21 inch models
  • 5-yearproduct warranty


Dimmer Kit

  • Allows the amount of light entering the room to be adjusted
  • Installed as lower section of the light pipe
  • Remote control operated
  • Can be hard wired to light switch
  • Available for 10, 13, 18, and 21 inch models
  • Perfect for media, conference,and TV rooms
  • 5-yearproduct warranty.


Exhaust Vent Kit

  • Adds an exhaust venting system to 10" model
  • Quiet motor exhausts up to 125 cfms
  • Incorporates a sleek light fixture with a hidden intake
  • Hard-wired to light switch
  • Perfect for bathrooms and laundry rooms
  • Flexibletubing allows many venting options including dual exhaust for shower stalls
  • 5-yearproduct warranty

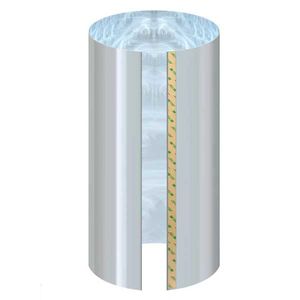

Pipe Extension

  • For use with Rigid Tubular Skylights to extend the length of the tube for longer distances
  • Available in 1' and 2' sections
