Standard and Low Profile

Lazer Mfg. Solar Attic Fans

A solar attic fan is a simple way to add a motorized venting system to your home without needing any extra electrical wiring or structural changes. Lazer Solar Attic Fans are manufactured using high-impact photovoltaic solar panels to power the fan for free all during the day. The units are fully operation right out of

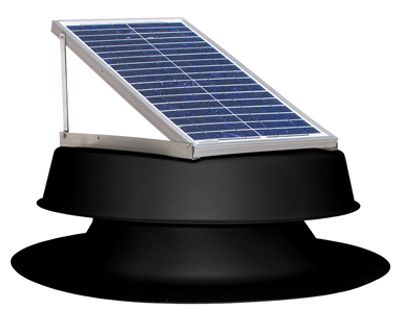

Standard Roof Mounted Solar Attic Fan


Features

  • Adjustable Solar Panel
  • .080 Aluminum Powder-Coated Housing
  • Powerful, Quiet Motor
  • Motor Isolation Bracket
  • 5 Wing Aluminum Fan Blade
  • Aluminum Rodent Screen
  • .080 Leakproof Aluminum Flashing
  • Flashing colors: Bronze, Black and Mill Finish
  • Available in 4 solar panel sizes: 12, 24, 36, or 60 watts. All other components are the same on all models. NOTE: solar panel on 60 watt unit installed remotely
  • Easy 1 Hour Installation
  • Qualifies for Solar Tax Credits
  • 25 Year Product Warranty

Venting Capacity

  • 12 watt: up to 893 cfms (1,260 sf)
  • 24 watt: up to 1,339 cfms (2,100 sf)
  • 36 watt: up to 1,628 cfms (2,625 sf)
  • 60 watt: up to 1,995 cfms (3,255 sf)

Accessories Available

  • Thermal Snap Switch - Turns fan on when attic temperature reaches 80 degrees F.
  • Fire Safety Cutoff Switch - Helps prevent spread of attic fires by shutting down fan. Can be installed alone or with a thermal snap switch
  • Garage Vent Kit - Converts roof or curb mount fan into garage venting system. Radiation Damper available (Required in some locations)
  • Remote Solar Panel - Solar panel installed in sunny location away from housing
  • Flashing Skirt for Tile Roofs - Used for tile installations. Installs over flashing for weather-tight installation

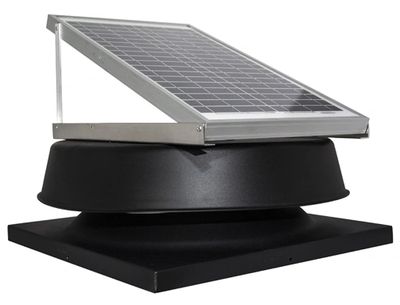

Standard Curb Mounted Solar Attic Fan


Features

  • Adjustable Solar Panel
  • .080 Aluminum Powder-Coated Housing
  • Powerful, Quiet Motor
  • Motor Isolation Bracket
  • 5 Wing Aluminum Fan Blade
  • Aluminum Rodent Screen
  • .080 Leakproof Aluminum Flashing
  • Flashing colors: Bronze, Black and Mill Finish
  • Flashing style: Flat Roof with Curb
  • Available in 4 solar panel sizes: 12, 24, 36, or 60 watts. All other components are the same on all models. NOTE: solar panel on 60 watt unit installed remotely
  • Easy 1 Hour Installation
  • Qualifies for Solar Tax Credits
  • 25 Year Product Warranty

Venting Capacity

  • 12 watt: up to 893 cfms (1,260 sf)
  • 24 watt: up to 1,339 cfms (2,100 sf)
  • 36 watt: up to 1,628 cfms (2,625 sf)
  • 60 watt: up to 1,995 cfms (3,255 sf)

Accessories Available

  • Thermal Snap Switch - Turns fan on when attic temperature reaches 80 degrees F.
  • Fire Safety Cutoff Switch - Helps prevent spread of attic fires by shutting down fan. Can be installed alone or with a thermal snap switch
  • Garage Vent Kit - Converts roof or curb mount fan into garage venting system. Radiation Damper available (Required in some locations)
  • Remote Solar Panel - Solar panel installed in sunny location away from housing

Low Profile Roof Mounted Solar Attic Fan


Features

  • Adjustable Solar Panel
  • .080 Aluminum Powder-Coated Housing
  • Powerful, Quiet Motor
  • Motor Isolation Bracket
  • 5 Wing Aluminum Fan Blade
  • Aluminum Rodent Screen
  • .080 Leakproof Aluminum Flashing
  • Flashing colors: Bronze and Black
  • Easy 1 Hour Installation
  • Qualifies for Solar Tax Credits
  • 25 Year Product Warranty
  • Roof-hugging design stands up to hurricane and tornado wide velocities without panel adjustment And should the panel be damaged, it can be easily replaced without replacement of the entire unit

Venting Capacity

  • 24 watt: up to 1,339 cfms (2,100 sf)

Accessories Available

  • Thermal Snap Switch - Turns fan on when attic temperature reaches 80 degrees F.
  • Fire Safety Cutoff Switch - Helps prevent spread of attic fires by shutting down fan. Can be installed alone or with a thermal snap switch
  • Garage Vent Kit - Converts roof or curb mount fan into garage venting system. Radiation Damper available (Required in some locations)

Standard Gable Mounted Solar Attic Fan


Features

  • Remote Solar Panel
  • Used on residential homes with an existing gable. Remote panel can be installed on all roof surfaces.
  • Powerful, Quiet Motor
  • Motor Isolation Bracket
  • 5 Wing Aluminum Fan Blade
  • Available in 4 solar panel sizes: 12, 24, 36, or 60 watts. All other components are the same on all models. NOTE: solar panel on 60 watt unit installed remotely
  • Easy 1 Hour Installation
  • Qualifies for Solar Tax Credits
  • 25 Year Product Warranty

Venting Capacity

  • 12 watt: up to 893 cfms (1,260 sf)
  • 24 watt: up to 1,339 cfms (2,100 sf)
  • 36 watt: up to 1,628 cfms (2,625 sf)
  • 60 watt: up to 1,995 cfms (3,255 sf)

Accessories Available

  • Thermal Snap Switch - Turns fan on when attic temperature reaches 80 degrees F.
  • Fire Safety Cutoff Switch - Helps prevent spread of attic fires by shutting down fan. Can be installed alone or with a thermal snap switch

How Does a Solar Attic Fan Work?

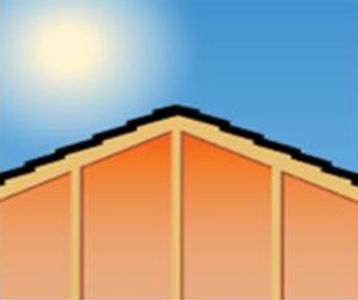

Heat Builds

  • Heat builds inside an improperly vented attic.  The sun beats down on a homes' roof and heats up the enclosed attic space.  Passive vents (soffit or gable) allow some circulation but do not provide the pressure needed to force out the hot air

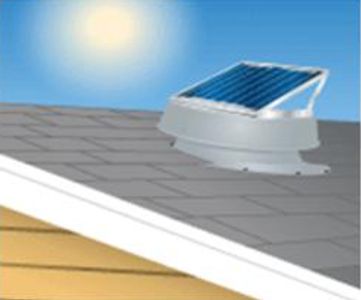

Air Movement

  • Solar attic fan provides air circulation.  The photovoltaic panel of the solar attic fan collects sunlight that powers the fans motor to increase air movement


Hot Air Forced Out

  • Air circulation moves hot air out of attic space.  The increased air circulation provides the pressure needed to force out the hot air from your attic. Attic venting can cool your attic space up to 40 degrees
